Brand Name : TENSTRON

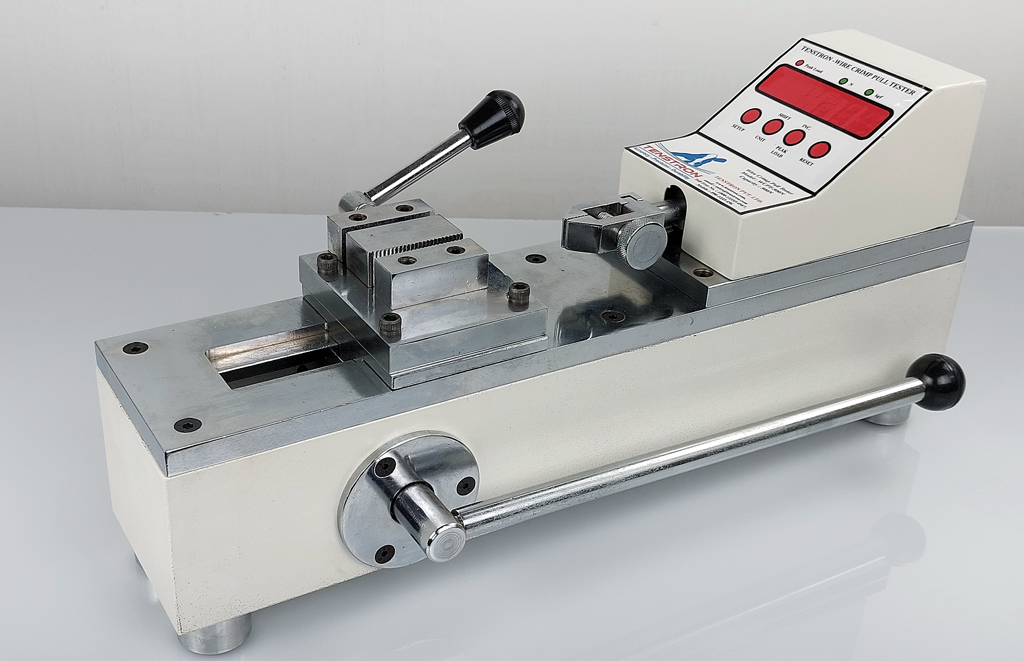

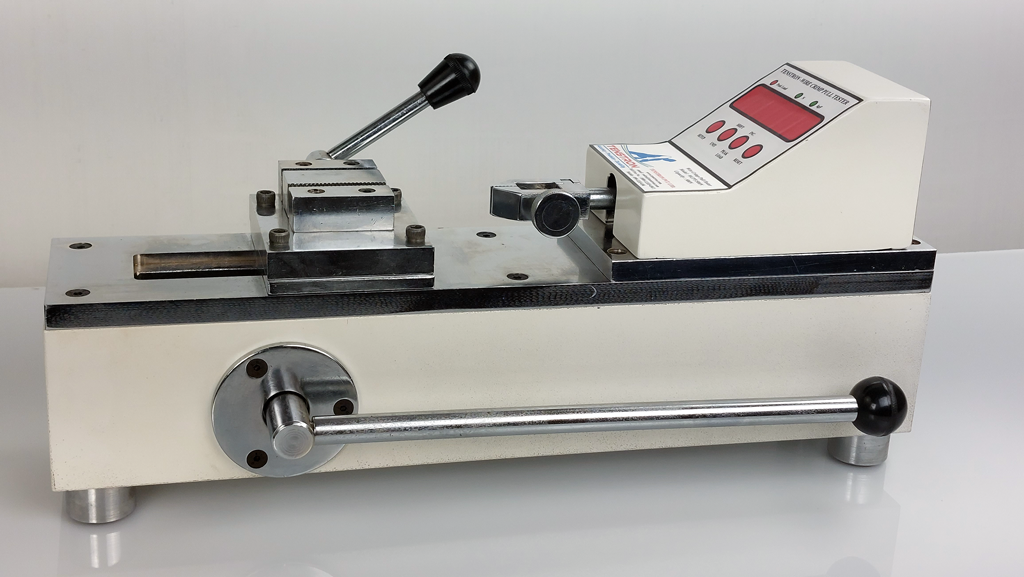

TENSTRON Wire Crimp Pull Tester

  • MODEL:

TENSTRON® manual pull tester is a rigid body multipurpose instrument to test the pull out or pull break test of the specimen. It can be used for Wire crimp force testing, Thimble pull out force testing, Button snap pull testing etc.


Capacity : 50 kg
Least Count : 10 gram
Traverse : 50 mm +
Operation : Manual

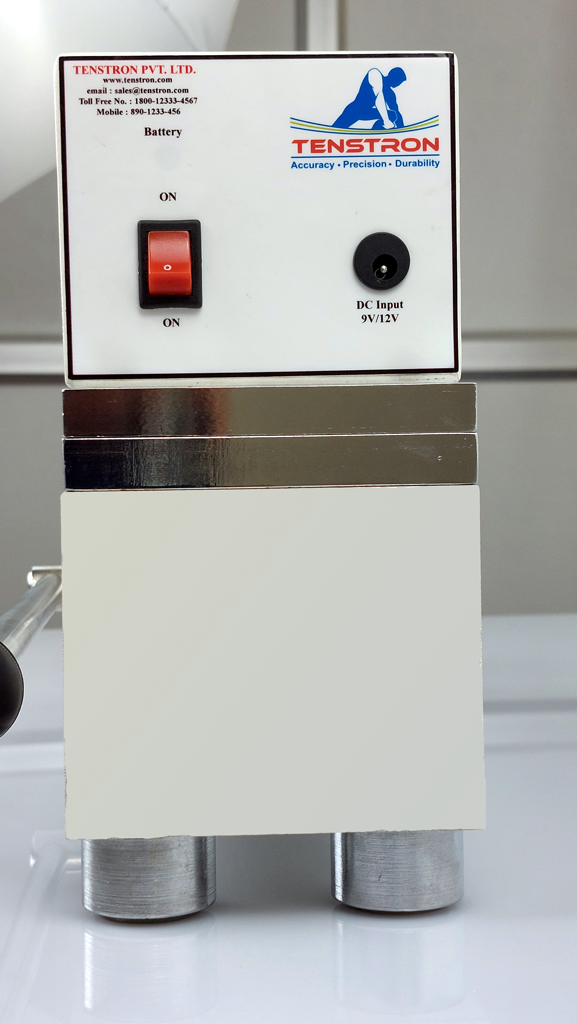

Battery : in build battery backup
Supply Voltage : 12V DC 1A
Adapter : 110V AC/220V AC to 12V DC 1A (supplied along-with)
Body : Cast Iron Heavy Duty
Weight : 23.5 kg. approx

TENSTRON® manual pull tester is a rigid body multipurpose instrument to test the pull out or pull break test of the specimen. It can be used for Wire crimp force testing, Thimble pull out force testing, Button snap pull testing etc. Application : Wire crimp force testing, Thimble pull out force testing, Button snap pull testing etc.

TENSTRON® Digital wire crimp pull tester is a horizontal digital push-pull tester to test tensile terminal pull-out force. It allows testing of up to 500N with the help of ergonomic lever easily.

The vise type anti-slip wire terminal grip is adjustable for wire diameter up to AWG 3 (6.3mm).

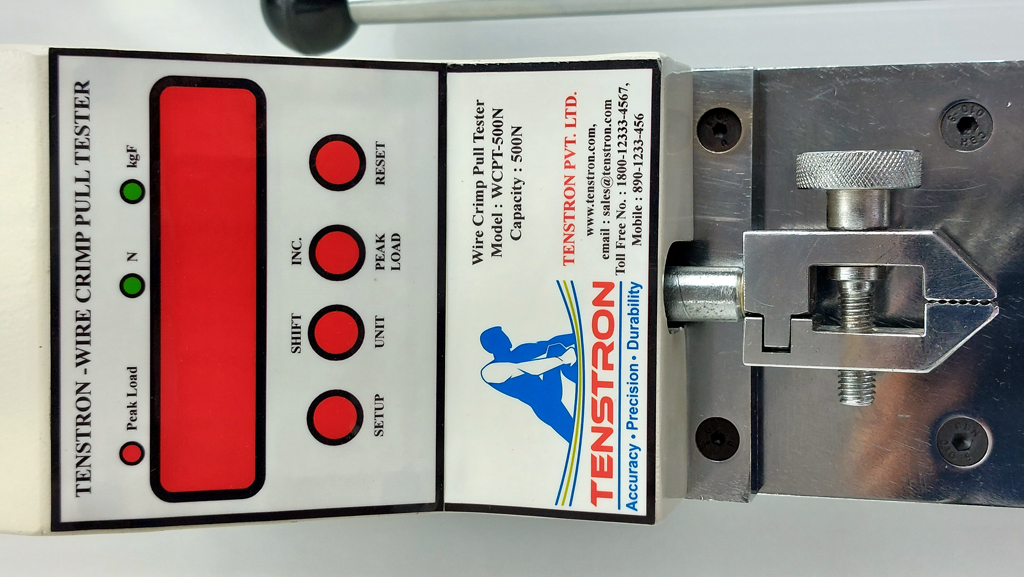

The display is capable to show the peak load value after the test completion and return back to normal mode automatically, although can be re-check with the help of PEAK LOAD button.

The display refreshes at high sampling rate to show the actual value of pull-out.

Capacity : 50 kg
Least Count : 10 gram
Traverse : 50 mm +
Operation : Manual
Battery : in build battery backup
Supply Voltage : 12V DC 1A
Adapter : 110V AC/220V AC to 12V DC 1A (supplied along-with)
Body : Cast Iron Heavy Duty
Weight : 23.5 kg. approx
